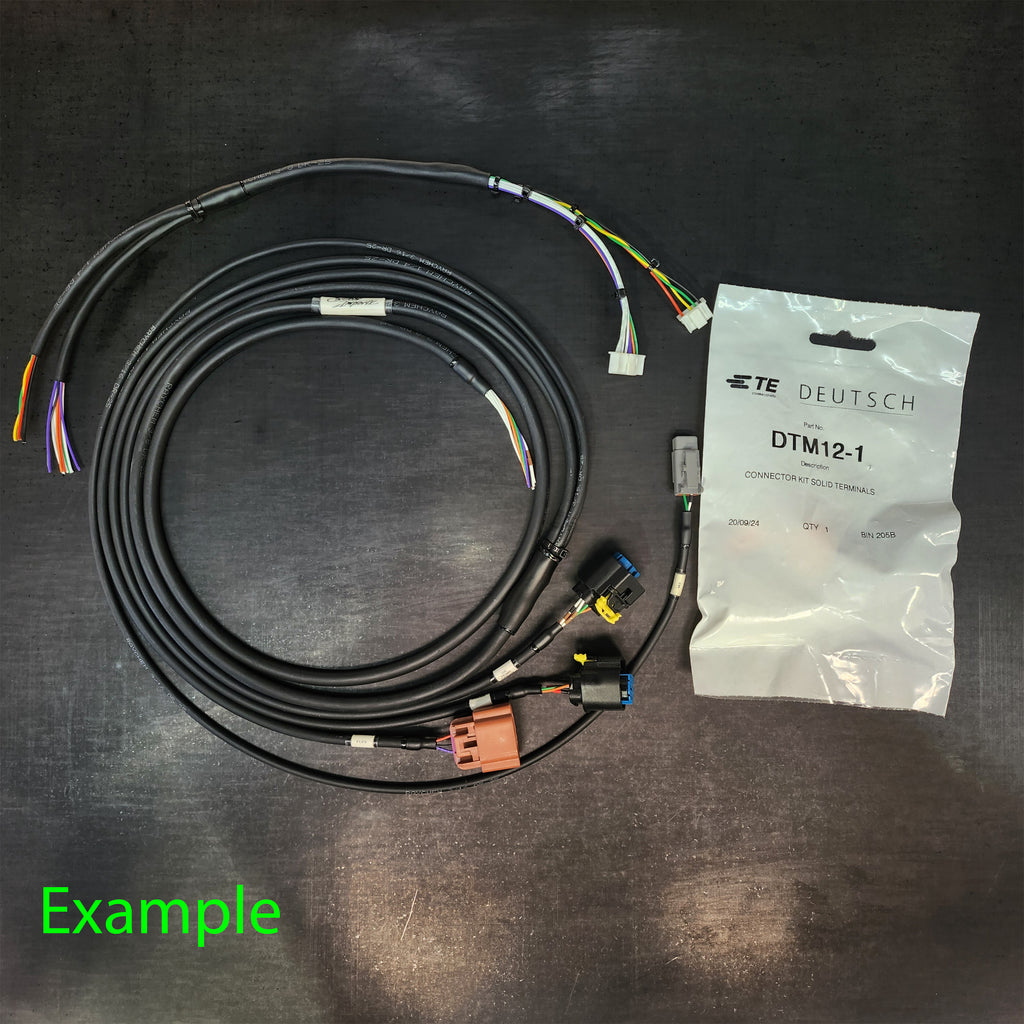

Expansion Loom made to suit an RX7 FD (Series 7 & 8) with a Link Plug And Play ECU (RX7S7X). This loom is made to a high "Mil Spec" standard using Tefzel wire and Reychem DR25 Heat Shrink
It adds provisions for an aftermarket Fuel Pressure and Temperature Senor, Oil Pressure and Temperature Sensor, Intake Air temp Sensor and Flex Fuel Sensor.
Fuel and Oil sensor - Bosch Combination sensor (0 261 230 482)
Intake Air Temperature - Link 1/8 IAT Sensor (IAT1-8)
Flex Fuel Sensor - Link Ethanol Content Sensor (ECS)
E-Throttle provisions can be optioned to get more out of your Plug and Play
An added CAN Lambda loom and module can be optioned for the maximum feedback of your air fuel ratio
