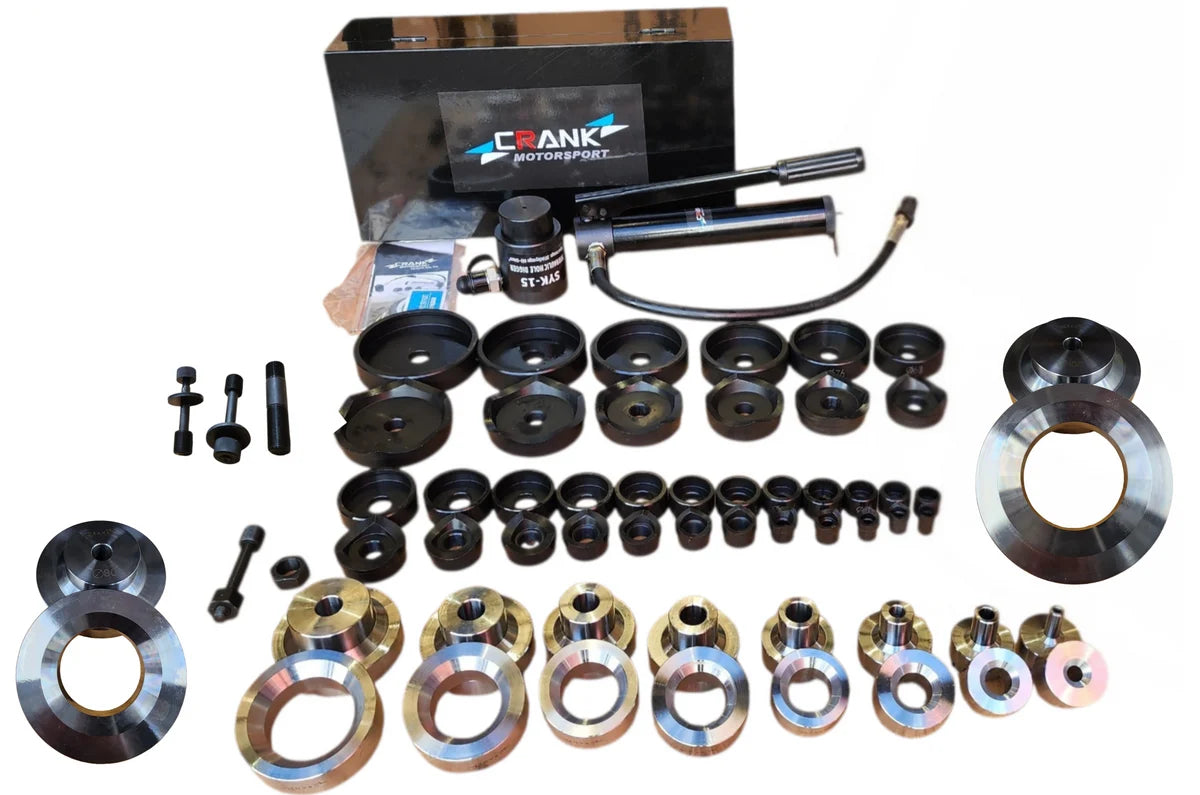

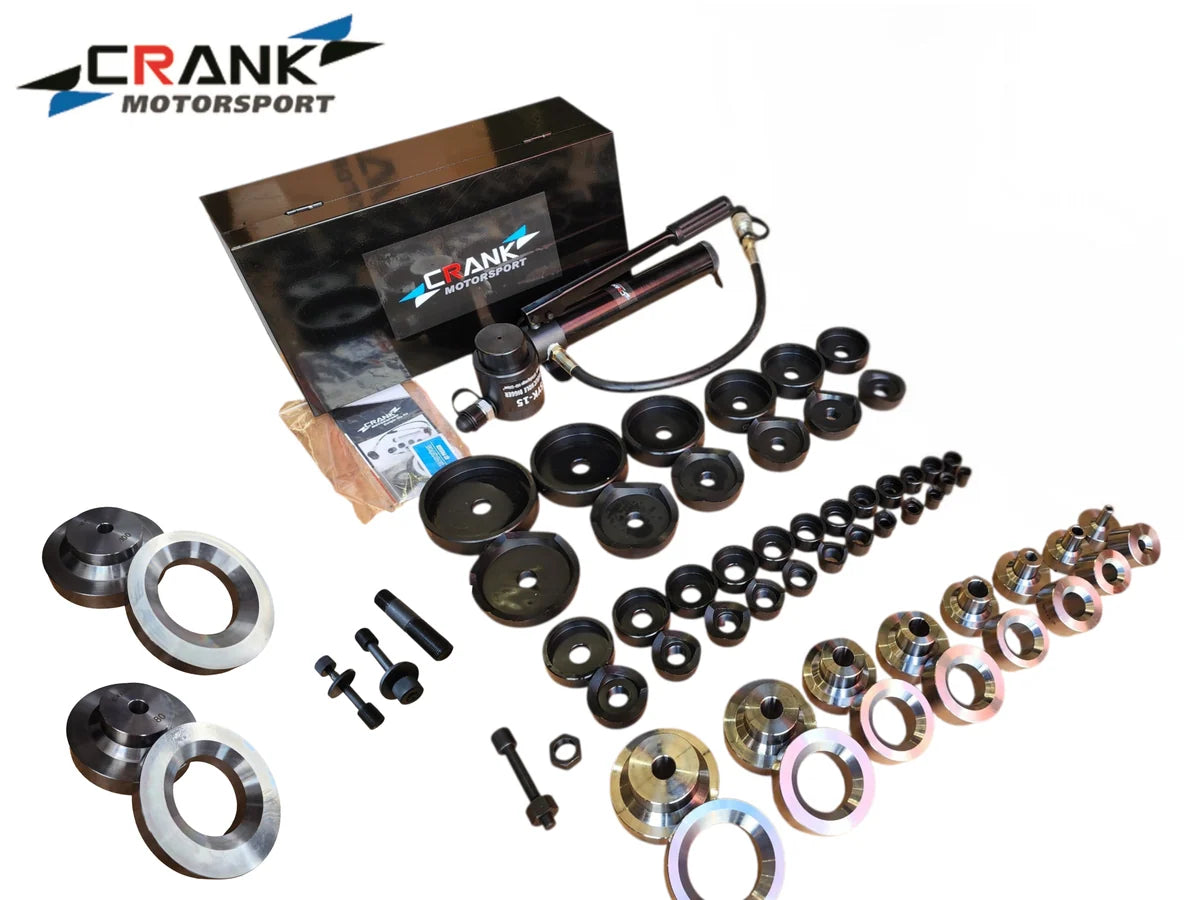

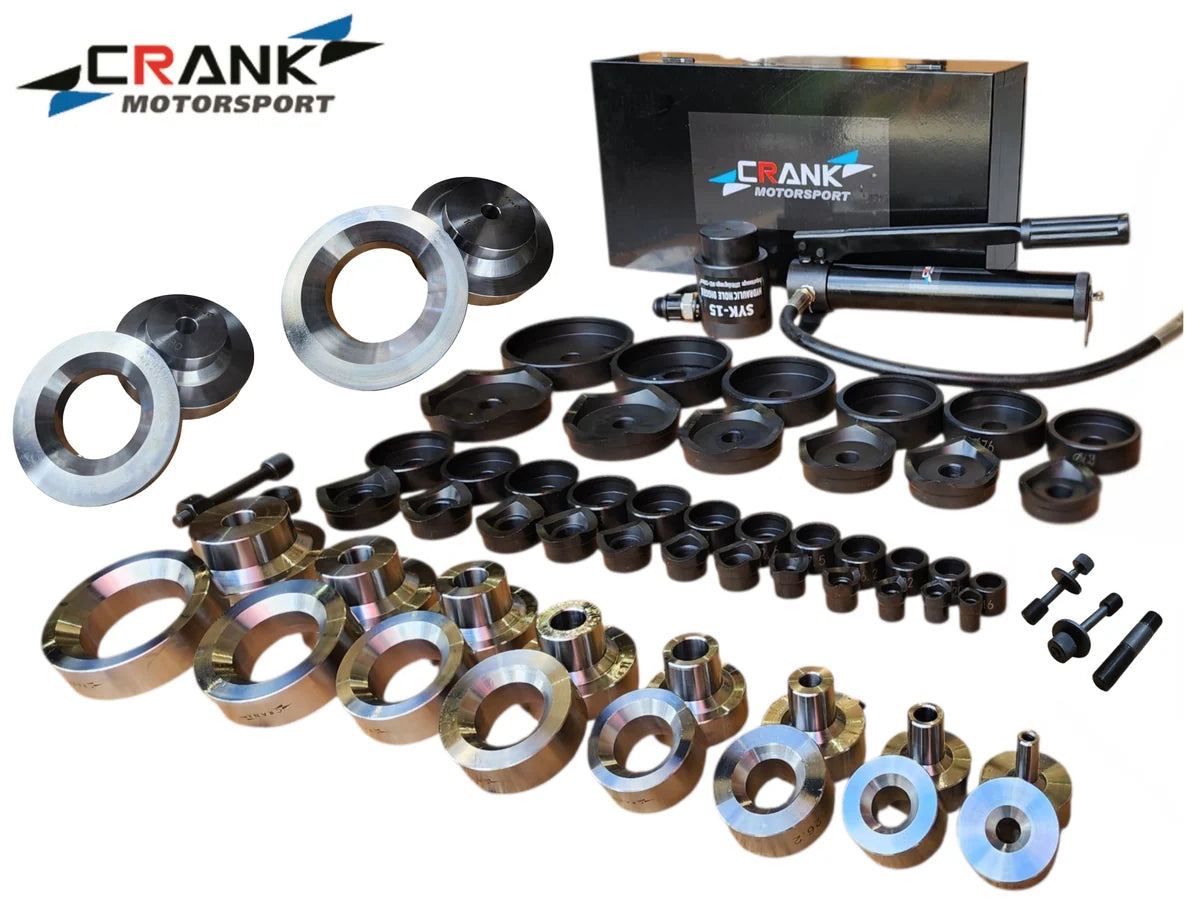

Crank Motorsport 56 Pcs Dimple Die + Hydraulic Hole Punch Set – 16 – 114 mm Cut, ½ – 4 in TAPER

Professional-grade hydraulic hole punch and dimple die set for all sheet metal work. Forget messy hole saws—this kit provides clean cuts and perfect dimples every time. Designed for both efficiency and durability, with tapered dimple dies for deeper dimples across a wide range of metal thicknesses.

Kit Features:

• Complete Set: 56 pieces including cutters and dimple dies from 12 mm (½ in) to 101 mm (4 in) shaft diameter
• Heavy Duty: Dimples made from chromoly steel and heat-treated for maximum strength
• Hydraulic Pump: Supplied with 15-ton mobile hand pump and ramp for on-site cutting/dimpling
• Precision Fit: Dimple dies perfectly matched to cutters for consistent results
• No Shop Press Needed: Cut and dimple anytime, anywhere
• Listing is for full 56-piece set of tapered dimple dies and hydraulic hole punch kit.

Cutter Sizes (Metric mm): 16, 20, 22, 26, 27, 32, 34, 39, 43, 49, 51, 60, 63, 76, 80, 89, 101, 114

Maximum Cut Thickness: 3.5 mm on mild steel, 2.0 mm on stainless steel

Dimple Sizes (Metric mm): 12, 20, 26, 32, 39, 43, 51, 63, 80, 101

Maximum Dimple Thickness: 3.0 mm

Advantages of Taper Dimple Dies:

• Accommodates a wide range of metal thickness (up to 3 mm)
• Creates bigger and deeper dimples

Disadvantages of Taper Dimple Dies:

• May produce stress lines at edges, prone to fracture (especially on aluminium)
• Appearance less uniform compared to radius dies
