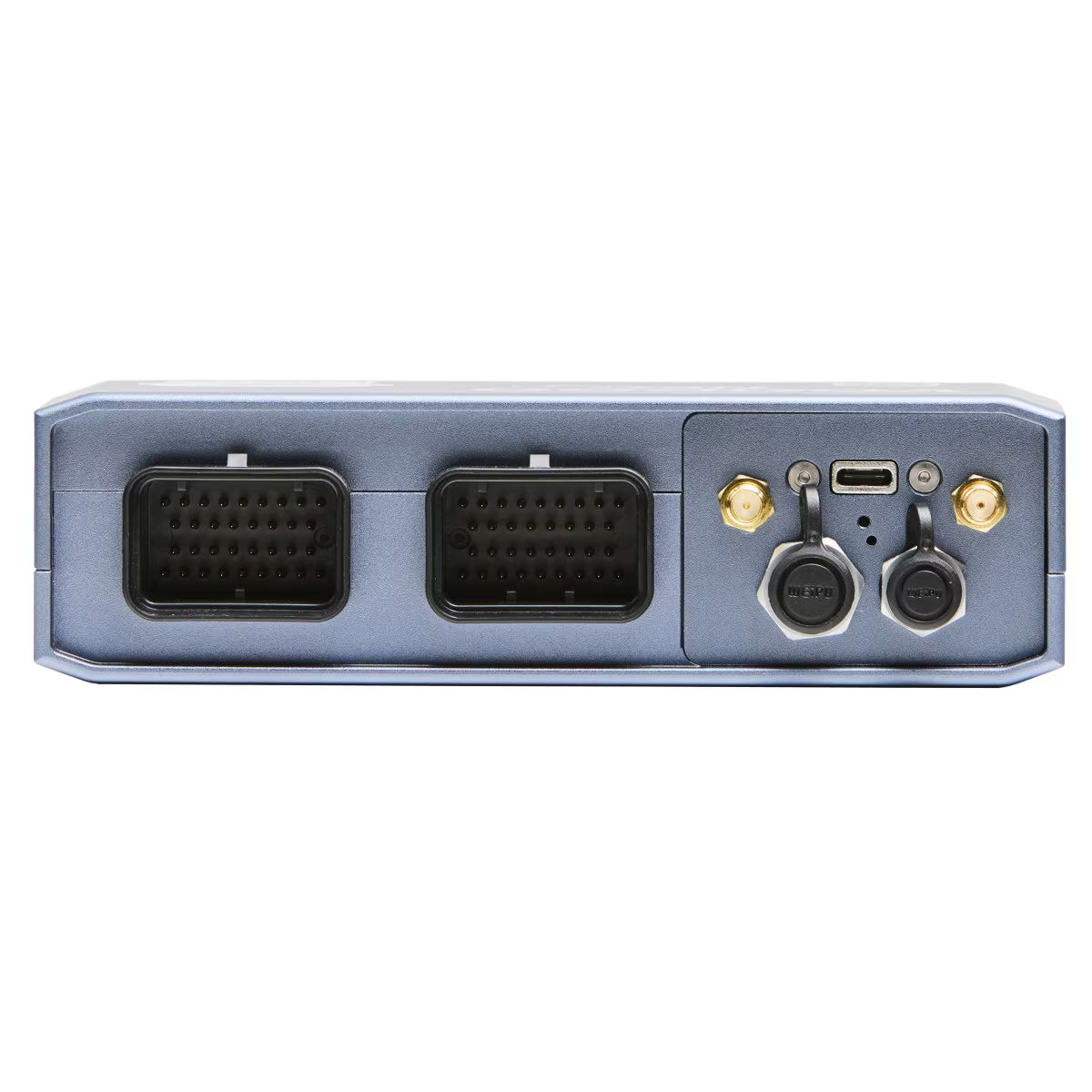

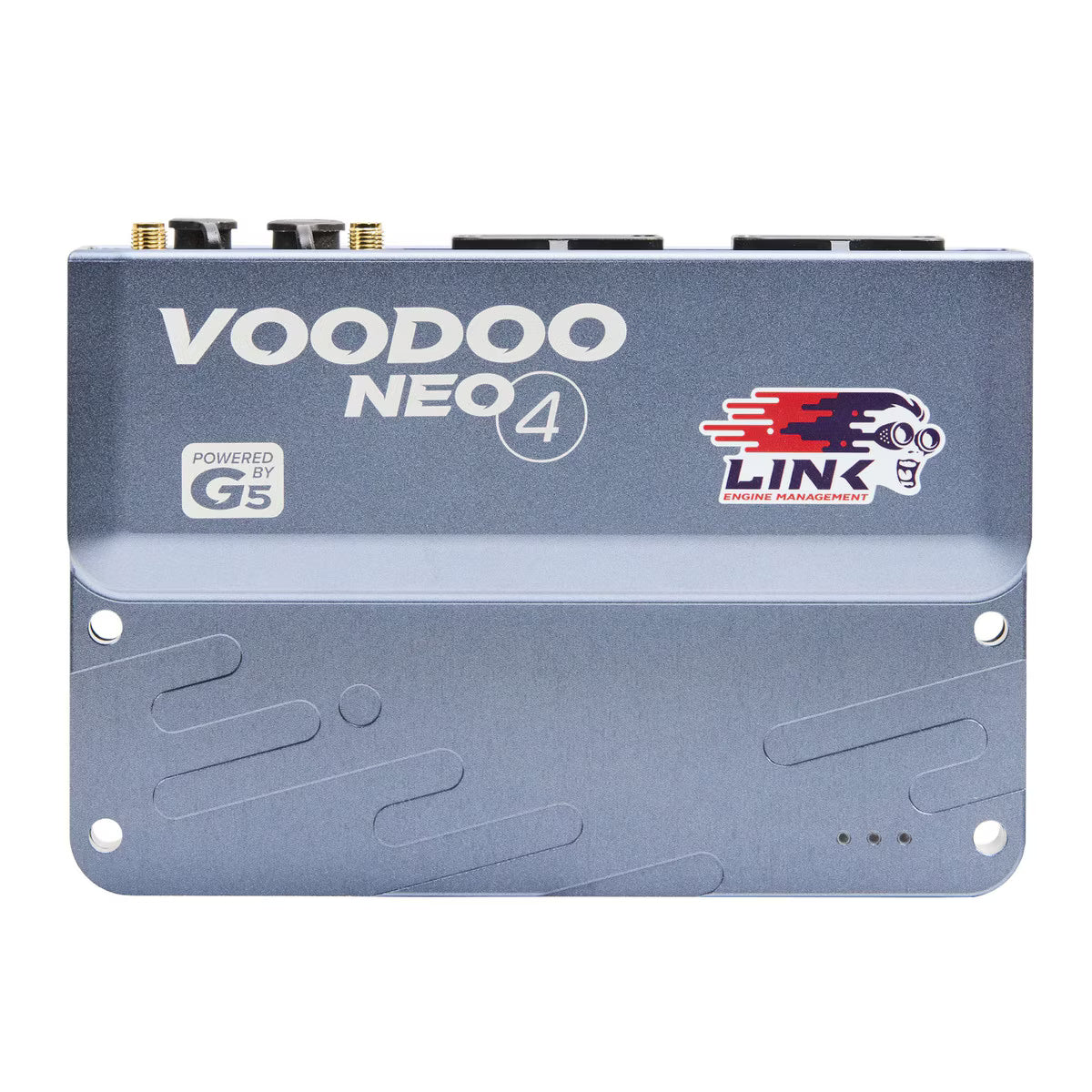

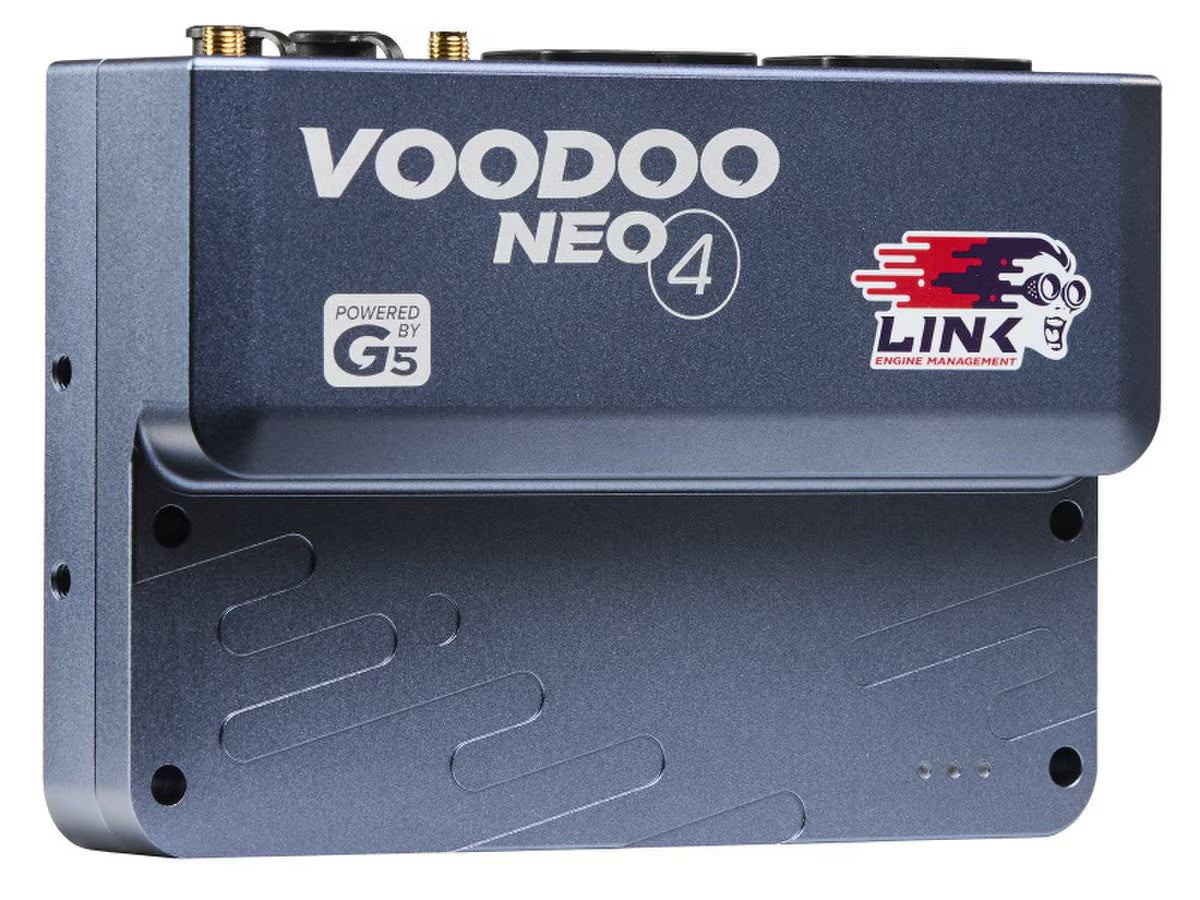

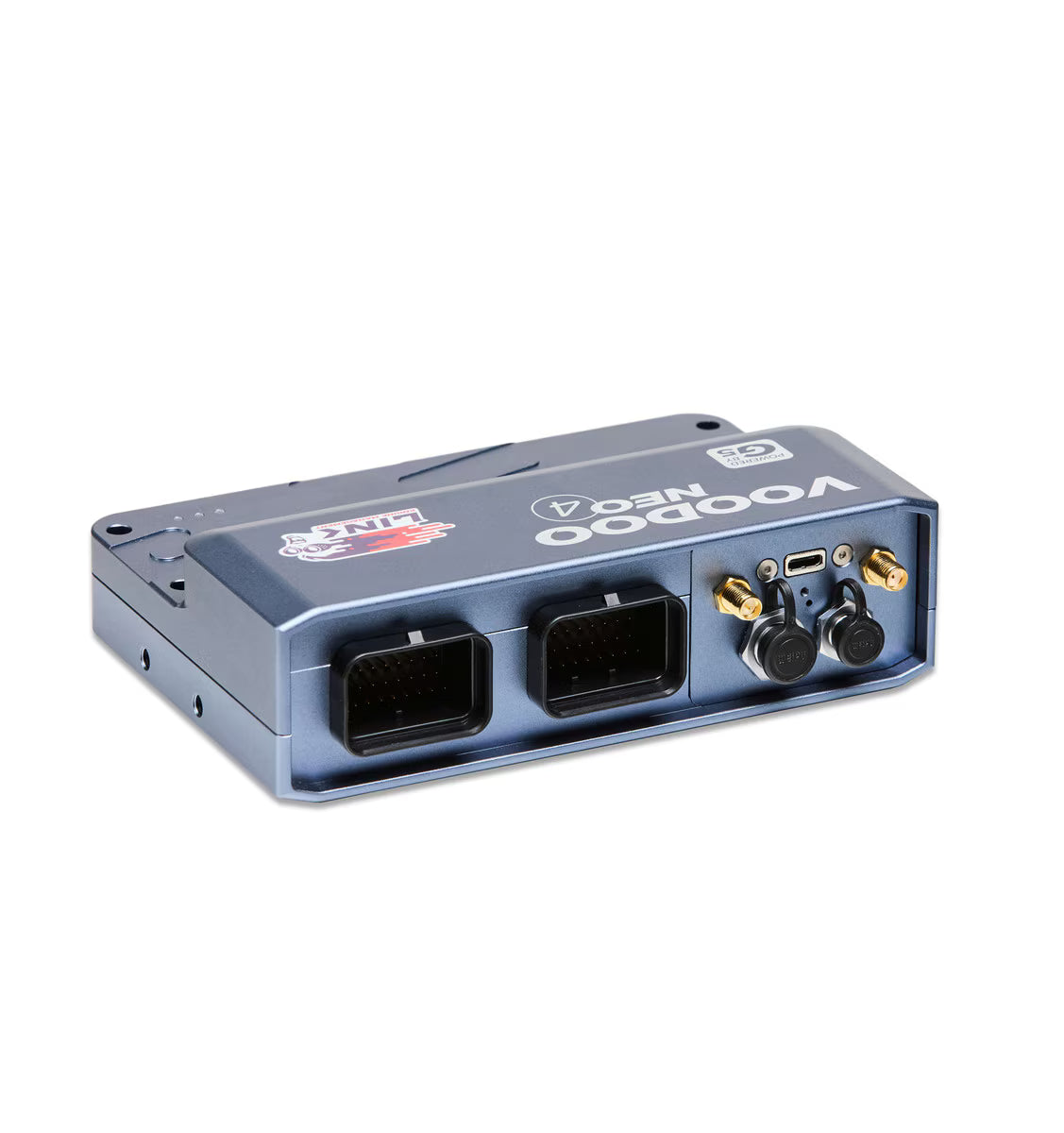

G5 Voodoo Neo 4
The next generation of engine management for many more engines.
The G5 Voodoo Neo 4 can run:
6 cylinders port or direct injection and direct spark, or,
4 cylinders with direct/port staged injection, and direct spark
The G5 Voodoo processing units are the perfect choice for professional level motorsport.
The G5 Voodoo Neo 4 works on a variety of vehicles, please contact a LinkECU Reseller or Technical Support for advice regarding your specific project.
In the box:
- G5 Voodoo Neo 4 ECU
- USB-C Connection Cable
- WiFi Antenna
- 4m GPS Antenna (Magnetic or Adhesive Mount)
- USB-C and SMA Dust Covers
- QuickStart Guide (A5)
- Installer I/O table (A3)
- Link stickers
Features:
- New comms module: Up to 10x faster log file download speeds, from minutes to seconds, and enhanced WiFi and GPS
- Built in ethernet
- 1GB onboard logging memory
- 1 onboard wideband
- CNC case, sealed enclosure
- 68 pins total (Link A and B 34 pin superseal connectors)
- K-line support
- New WEIPU CAN connector, which supplies power for the CAN-bus.
- Highly customisable IO, using 2 types of multi purpose pins:
ADIO pins and Aux./Digital-Input pins. These pins can act as inputs or outputs. - Can now power up via the USB cable, making firmware updates and setting up the initial tune a breeze at your PC.
- Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software (G4X Map can also be loaded into a G5 Voodoo Pro)
- More mounting options than ever, with through holes and threaded mount holes on the side and underneath.
- All NEOs are direct injection capable, including staged port-DI on NEO 4 and 6.
Requires “A” & “B” connector kits (not supplied).
